| Model | CA12-R3F5C |
| Type | Cable |
| Connector series | M12 |
| Coding type | A Coding |
| Connector type | Female/ Right angle |
| Contacts | 3 Pin |
| Pin Material | Brass or Phosphor Bronze with Gold plating |
| Coupling screw | Nickel plated brass |
| Rated voltage | 250V |
| Rated current | 4A |
| Insulation resistance | ≥100MΩ |
| Cable Material | PVC |
| Cable length | 5 M |
| Cores | 0.34mm2 |
| Operating Temperature | -25~85℃ |
| Protection Degree | IP67 |

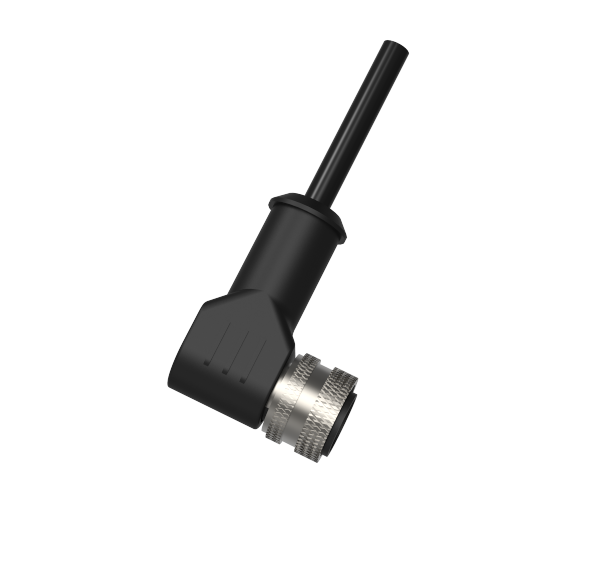

CA12-R3F5C (Bend/M12/Female)
Model
CA12-R3F5C
Product
Cable
Shape
Bend
Interface
M12
Type
Female
Pins
3pin
