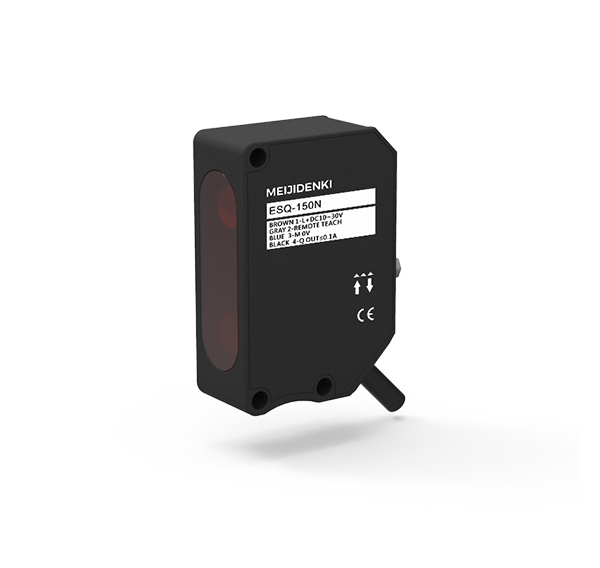

ESQ-150N (Retro/150cm/NPN)

Model

ESQ-150N

Product

Transparency Laser Sensor

Model

Retro Reflective

Sensing Distance

150cm

Output Type

NPN

Switch Action

Dark.ON&Light.ON

Model	ESQ-150N
Sensing method	Retroreflective
Sensing distance	150cm
Spot size	φ15mm/150cm
Output Type	NPN Open collector,≤100mA/30V DC
Switch Mode	L.on ( Light.ON )/D.on ( Dark.ON ) Selectable output types
Indicator	Ouptut Indicator: Orange； Laser Indicator: green
Digital indicator	7 segment, 3 digit Red LED
Response Time	0.7 ms
Delay Timer	Off delay/On delay/One shot delay (1msec increment : 0-999msec, 1sec increment for 1-10 sec)
Sensitivity setting	Button
Emitting Light	Laser (650nm )
Laser class	Class2
Operating Voltage	12~24V DC±10%
Current Consumption	＜35mA
Ambient illuminance	Sunlight≤10000Lux， Incandescent lamp≤3000Lux
Operating Temperature	-10℃~+50℃, No freezing
Operating Humid	35%~95%RH , No freezing
storage Temperature	-25℃~+70℃, No freezing
storage Humid	35%~95%RH , No freezing
Insulation Resistance	50G(500m/s²),XYZ each direction
Shock resistance	≥20MΩ(500V DC)
Vibration resistance	10~55Hz amplitude 1.5mm，XYZ， 2 hours
Protection Degree	IP 67
Material	Anti-bacterial ABS (housing), PMMA (lens)
Wiring Method	2M 4-wires cable
